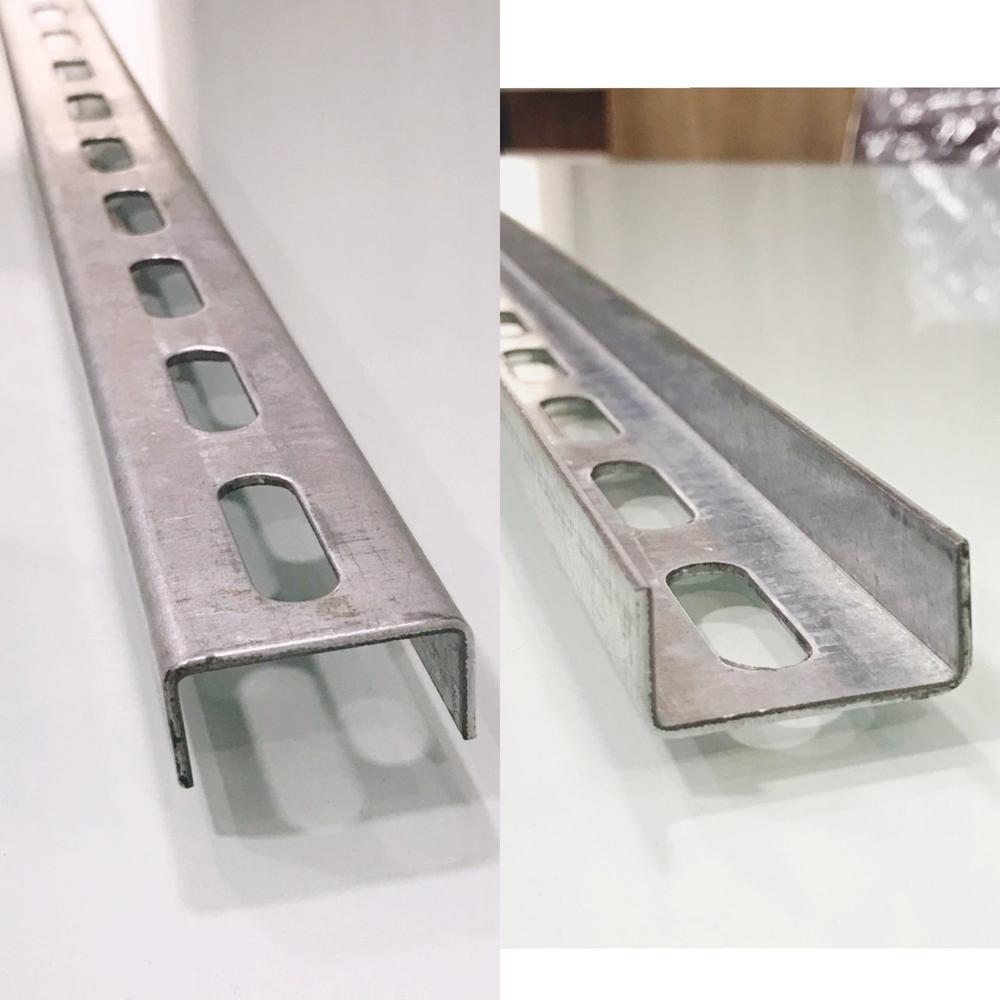

C-channels are specified by their dimensions (depth, width, and thickness), material properties, and standards. Below are common specifications:
Dimensions: C-channels are typically designated by their depth (height of the channel) and weight per unit length. For example, a C8 x 18 would mean the channel is 8 inches deep and weighs 18 pounds per foot.
Web Thickness: The thickness of the vertical web of the channel.
Flange Width: The width of the horizontal flanges on top and bottom.
Material: C-channels are usually made of steel (like ASTM A36, A992, etc.), but can also be made from other materials like aluminum or stainless steel.
Length: C-channels can be fabricated to various lengths based on the requirements of a project.
.Common Standards for C-Channels
ASTM A36/A36M: Standard specification for carbon structural steel shapes, plates, and bars of structural quality.
ASTM A572: Standard specification for high-strength low-alloy columbium-vanadium structural steel.
ASTM A992: Standard specification for structural steel shapes for use in building framing.
